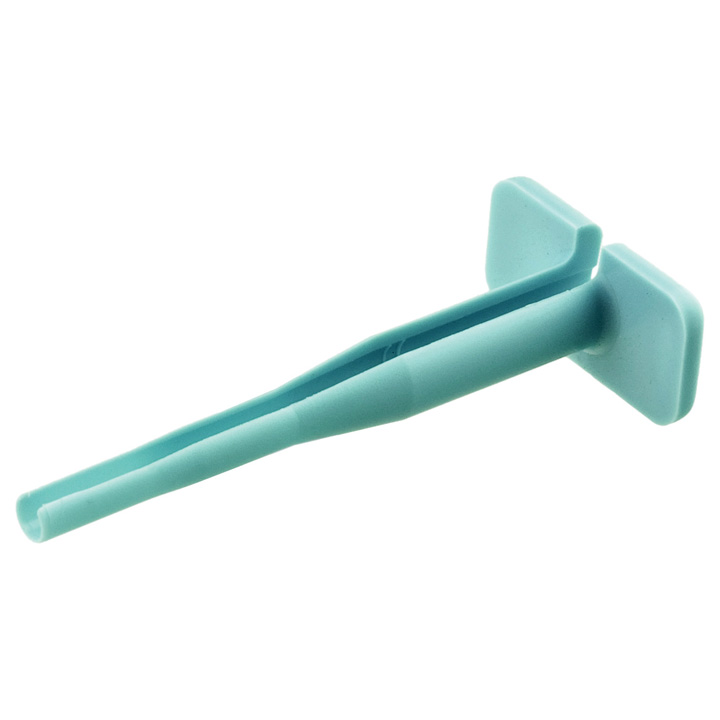

0411‑310‑1605 SIZE 16, 16-18AWG LIGHT BLUE EXTRACTION TOOL

16AWG – 18AWG LIGHT BLUE EXTRACTION TOOL (REDUCED WIRE SEAL)

The 0411‑310‑1605 Light Blue Extraction Tool is designed for safe and efficient removal of size 16 contacts from sealed connector housings using reduced wire seals. Suitable for 16AWG and 18AWG conductors, this tool allows contacts to be released without damage to the wire, insulation, seals, or connector body.

Manufactured from durable plastic and colour coded light blue for easy identification, the 0411‑310‑1605 extraction tool is suitable for workshop and field service use in harsh environments. It is commonly used across automotive, trucking, mining, construction, agricultural, marine, and industrial electrical systems where reduced wire seal configurations are utilised.

Specifications:

Contact Size: 16
Wire Size Range: 16 to 18AWG
Seal Type: Reduced Wire Seal
Tool Colour: Blue
Material: Plastic

Compatible Connector Series:

• HD and HDP Series
• DRC Series
• DTM Series
• Other connectors utilising round shoulder contact retention systems
